Vibration Meter Three Parameters 0020-A199

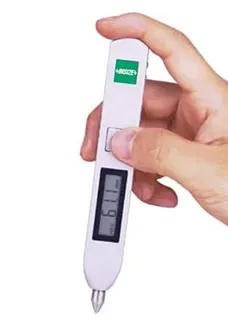

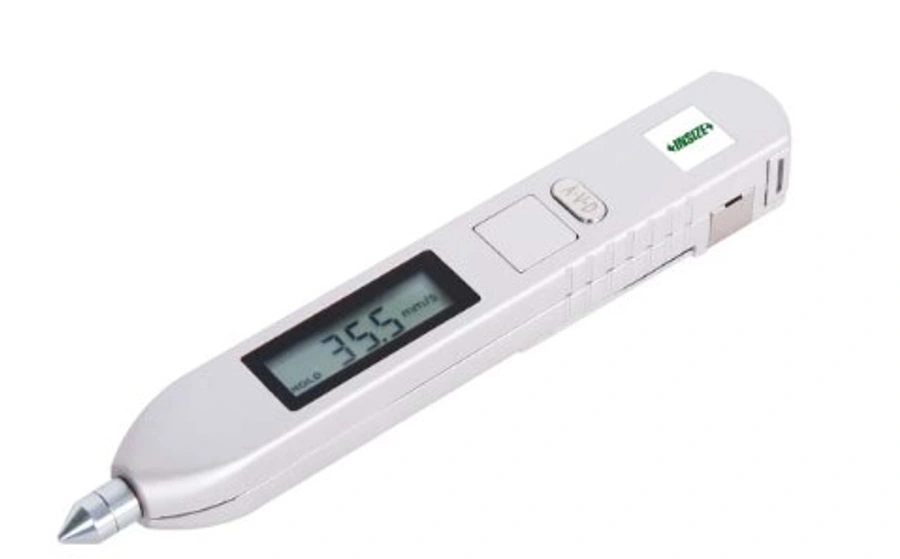

The INSIZE 0020-A199 Vibration Pen is a compact and portable device designed for measuring acceleration, velocity, and displacement of vibration. It is widely used for equipment maintenance, machinery diagnostics, and quality control. With its slim design and easy-to-read LCD display, it allows users to quickly test vibration levels on-site with high accuracy.

Key Features:

• 3-in-1 Measurement: Acceleration, velocity, and displacement in a single device
• Measuring Ranges:
• Acceleration: 0.01 – 199.9 m/s² (peak value)
• Velocity: 0.01 – 199.9 mm/s (virtual value)
• Displacement: 0.001 – 1.999 mm (peak-to-peak value)
• Frequency Range:
• Acceleration: 10 Hz – 1 kHz
• Velocity: 10 Hz – 1 kHz
• Displacement: 10 Hz – 500 Hz
• High Accuracy: Frequency response ±5% (≥20 Hz), -20%~+10% (<20 Hz)
• Automatic Power Off for extended battery life
• Compact & Lightweight: Only 55 g with slim pen design (150 × 22 × 18 mm)
• User-Friendly Display: Clear LCD screen for instant readings
• Power Supply: 2 × LR44 batteries (up to 10 hours continuous use)
• Durable Design: Operates in 0°C~40°C and humidity <85%
