Insize Vibration Meters (Basic Type) 0023-V199A

insize-vibration-meters-basic-type-0023-v199a-00685-a

Insize Vibration Meters (Basic Type) 0023-V199A

$0

Product Code: 00685

1
Pcs

The INSIZE VIBRATION METER (BASIC TYPE) 0023-V199A is a portable tool for measuring vibration parameters in mechanical equipment. It is manufactured by INSIZE, a company specializing in measuring instruments.

Key features

  • Measurement functions: Can measure acceleration, velocity, and displacement.
  • Sensor type: It has an integrated piezoelectric ceramic accelerometer.
  • Measurement range:
  • Acceleration: 0.1 to 199.9 m/s² peak.
  • Velocity: 0.1 to 199.9 mm/s rms.
  • Displacement: 0.001 to 1.999 mm peak-to-peak.
  • Frequency range: Measures vibrations within the 10 Hz to 1 kHz range.

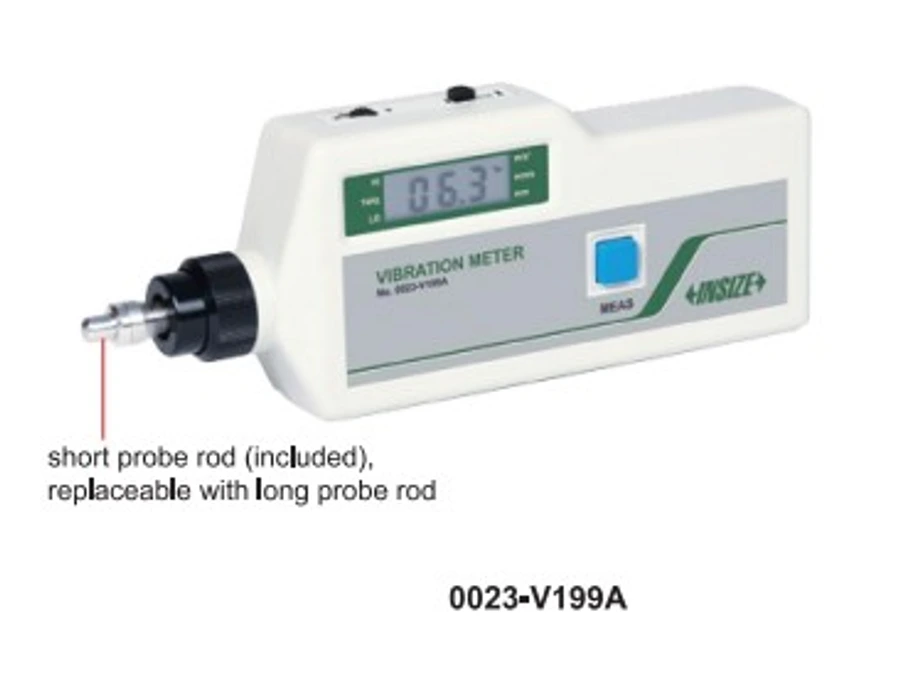

  • Probes: Includes both a short and a replaceable long probe rod for different access points.
  • Functionality:
  • Data hold: Freezes the current reading on the display.
  • Automatic power off: Conserves battery life by shutting down after a period of inactivity.
  • Display: Features a 3 1/2-digit LCD for clear, direct readings.
  • Battery: Uses a 9V alkaline battery and has a low battery indicator.
  • Weight: Weighs approximately 228g (including battery).
