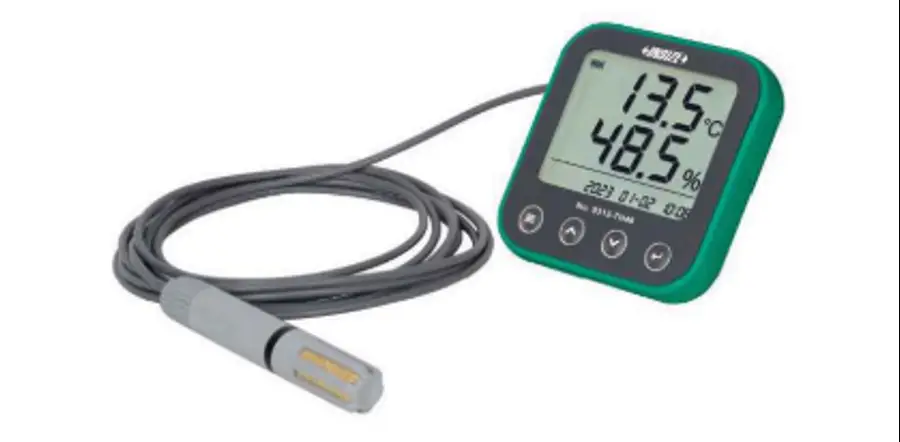

Insize Thermohygrometer 0313-TH48

Country of Origin - India

Power Supply - Built In Rechargeable Battery

Type of Product - Thermohygrometer

Weight - 174 g

Humidity Range (Rh %) - 0%RH-99.9%RH

Humidity Accuracy - ±5%RH (at 10°C~60°C), other range ±7% ±5%RH (at 50°F~140°F), other range ±7%

Range - -40°C to 80°C/-40°F to 176°F

Sampling time - 5 seconds

Resolution - 0.1°C

Accuracy - ±0.5°C (at -20°C~60°C), ±1,0°C (at 60°C~80°C), ±2°C (at -40°C—20°C), ±2°F(at -20°F~176°F), ±3°F (at -40°F~-20°F)

Humidity Resolution - 0.1% RH

Dimension - 88x88x21 mm

Model No - 0313-TH48

Name of Manufacturer/Packer/Importer - INSIZE CO., LTD.

Insize -40°C to 80°C Range Thermohygrometer, 0313-TH48 is a combined instrument used to measure and display both temperature and relative humidity (RH) levels in the surrounding environment. It is a valuable tool in various industries and applications where monitoring and controlling these environmental parameters is crucial for safety, comfort, and quality assurance.

Key components and functions of a thermohygrometer include:

Temperature Sensor: A thermohygrometer is equipped with a temperature sensor, which is typically a thermistor or a thermocouple. This sensor measures the ambient temperature and converts it into an electrical signal.

Relative Humidity (RH) Sensor: The instrument also features a humidity sensor, usually a capacitive or resistive sensor. This sensor measures the amount of moisture in the air and calculates the relative humidity as a percentage.

Digital Display: The thermohygrometer has a digital display that shows real-time readings of both temperature and relative humidity. The display may also include additional information, such as minimum and maximum values, dew point calculations, and trends over time.

Data Logging (optional): Some advanced thermohygrometers are equipped with data logging capabilities, allowing them to record temperature and humidity measurements at regular intervals. This data can be retrieved and analyzed for quality control and trend monitoring.

Alarms (optional): Certain models are equipped with alarms that can be set to trigger when temperature or humidity levels exceed specified thresholds. These alarms are particularly useful in applications where maintaining specific conditions is critical.

The operation of a thermohygrometer involves the following steps:

Placement: The thermohygrometer is positioned in the area or environment to be monitored. Proper placement is essential to ensure accurate readings, as it should be away from direct sunlight, heat sources, drafts, and areas with extreme conditions that could affect accuracy.

Activation: The instrument is activated by turning it on or pressing a power button. Some models may have a standby mode to conserve battery power.

Measurement: The thermohygrometer begins measuring temperature and humidity levels in real-time. These measurements are continuously updated and displayed on the digital screen.

Data Analysis: Users can monitor the displayed temperature and relative humidity readings and assess whether they fall within the desired or acceptable range. Alarms, if available, can notify users of conditions outside set limits.
