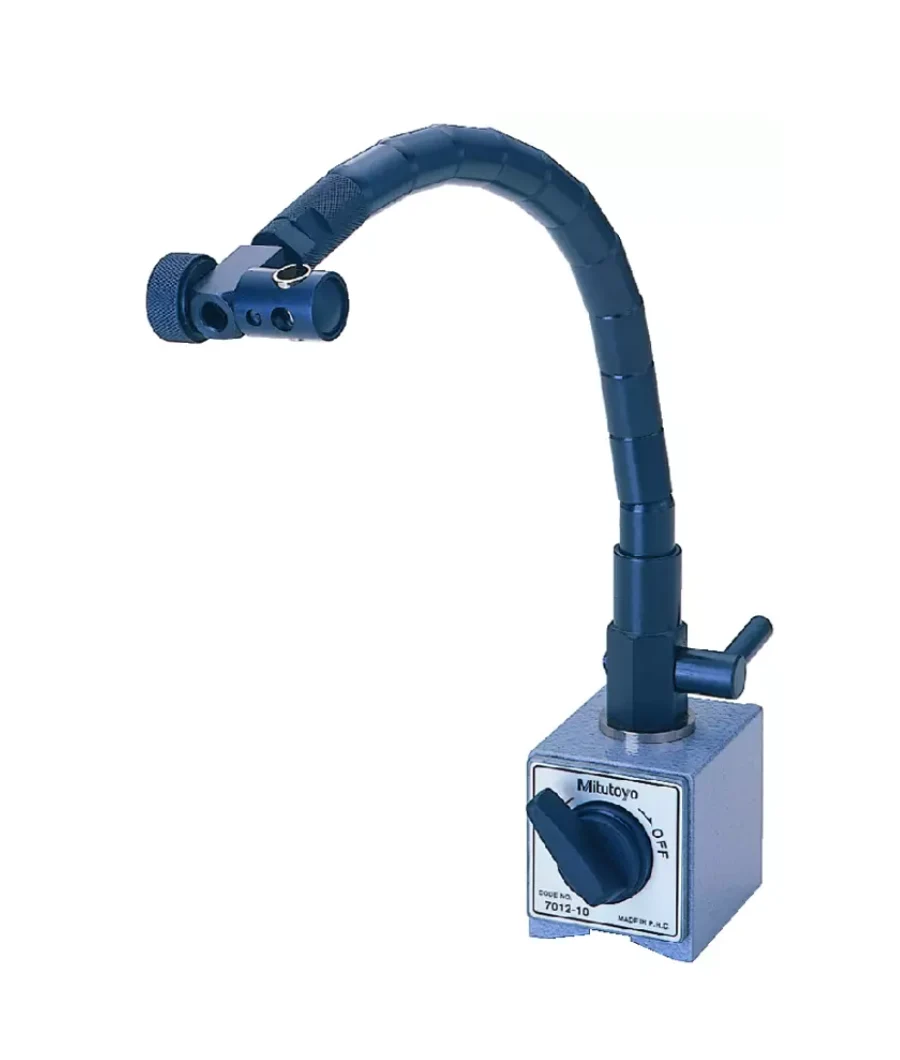

7012-10 Magnetic Stand with Flexible Arm, Mitutoyo

About this Item

Magnetic Stand with Flexible Arm

250mm Working Radius

Code: 7012-10

Description

A magnetic Mitutoyo stand that uses a switchable permanent magnet for convenient mounting onto flat iron or steel surfaces. The arm can be mechanically locked in any position using the knob on the upright. Useful for holding dial indicators or dial test indicators during alignment operations.

Features

Clamping device: magnetic

Clamping force (vertical): 600 N

Base size (LxWxH): 59 x 50 x 55 mm

Total height:396 mm

Stem hole ø: 6 mm, 3/8" / 9.53 mm, 8 mm (with stem bush)

Thread Arm/Base: M8 x 1.25

Mass: 1.5 kg
