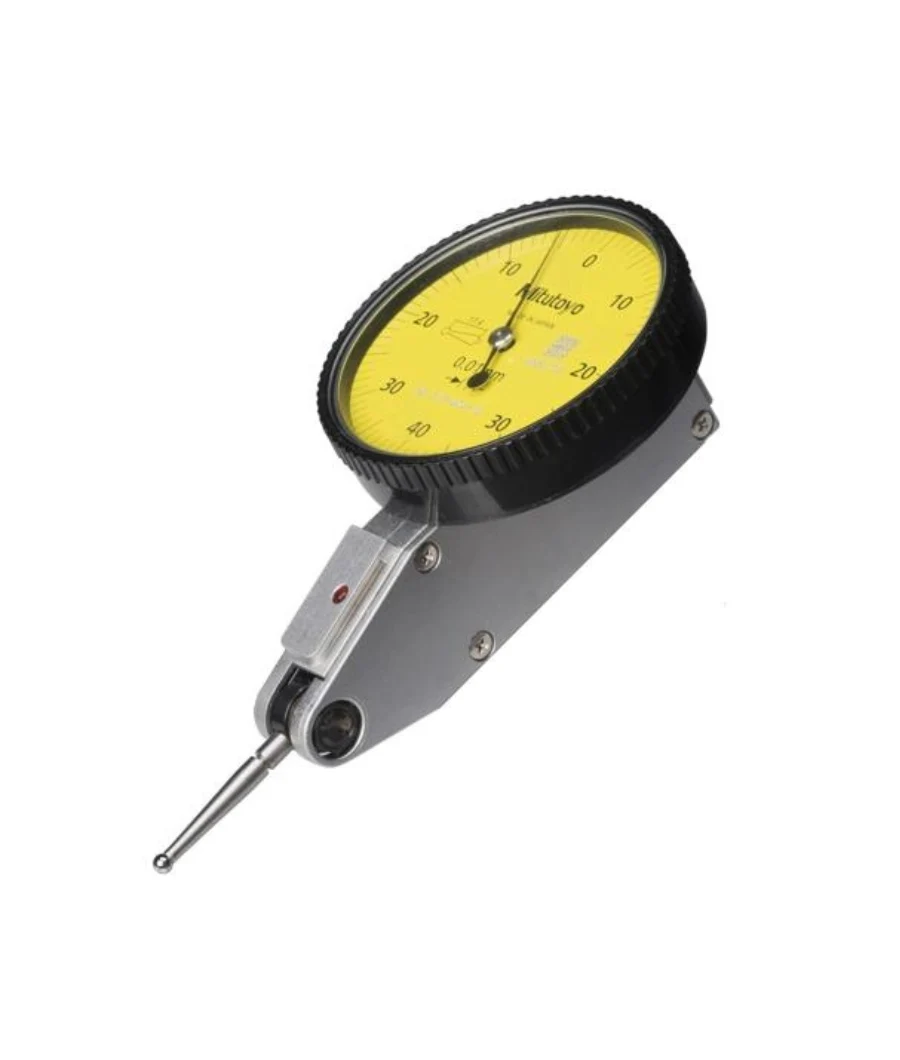

Dial Test Indicator, Horizontal Type

Code: 513-404-10A

Description

This is a Dial Test Indicator (Lever Type) which offers you the following benefits:

• Drastically enhanced durability, sensitivity and visibility.
• Glare-free flat crystal face allows easy reading of graduations.
• O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
• The stylus length is on the dial face to reorder a replacement
• Multi-layer coatings on the crystal.

Features

Digital/Analog: Analog

Inch-Metric: Metric

Type: Plus set

Delivered: In a box with stem ø8/4 mm, stylus ø1/2/3 mm

Range: 0.8 mm

Graduation: 0.01 mm

MPE any 10 scale divisions: 5 Âµm

MPE any 1/2 revolution: 6 Âµm

MPE measuring range: 8 Âµm

H MPE (Hysteresis): 3 Âµm

R MPE (Repeatability): 3 Âµm

Carbide stylus tip ø2 mm No.: 103006

Mass: 45 g

Contact point: Thread M 1.7 x 0.35
