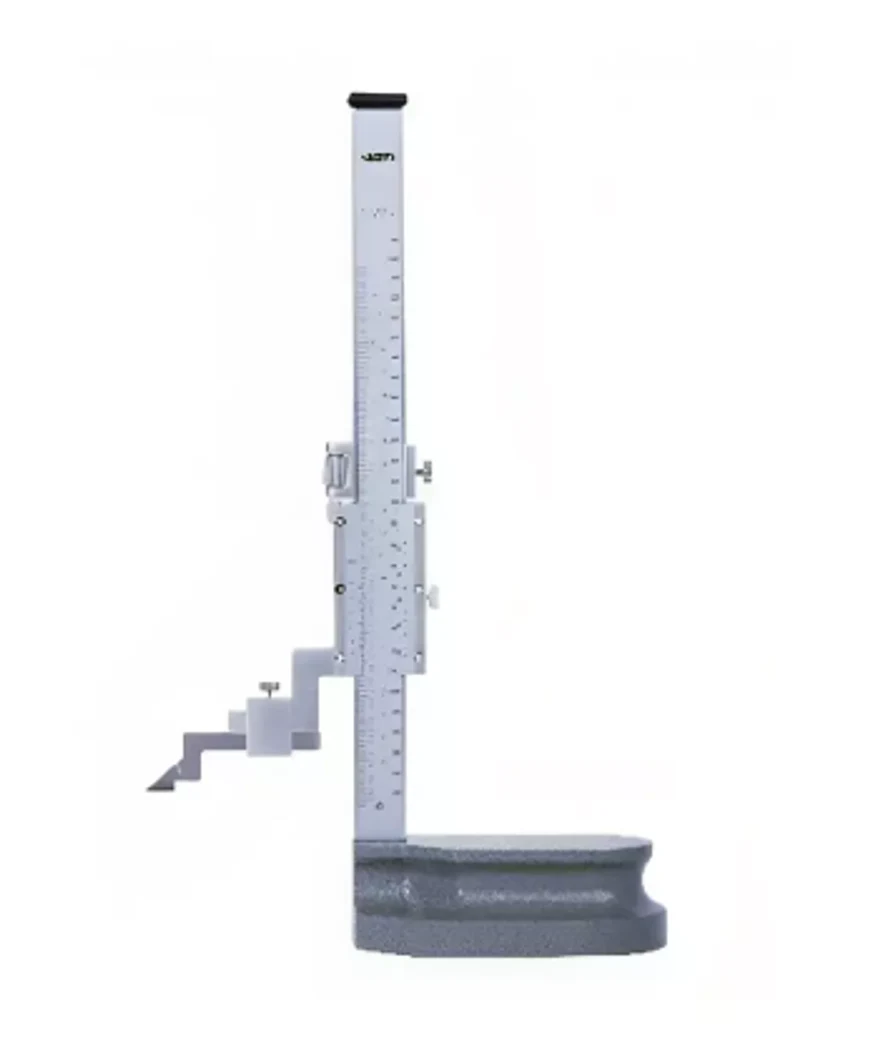

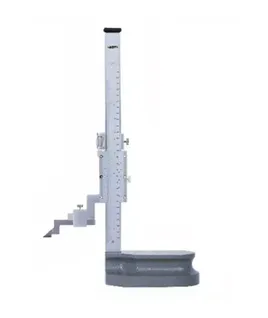

Insize Vernier Height Gage 1251-1000

Type of Product - Vernier Height Gage Basic Type

Model No - 1251-1000

Material - Stainless Steel

Accuracy - +/- 0.07 mm

Range - 0-1000 mm

Graduation - 0.02 mm

Length - 1275 mm

Country of Origin - India

Included Components - Dial Test Indicator Holder, Dust Cover

Surface - Satin Chrome Plated

Name of Manufacturer/Packer/Importer - INSIZE CO., LTD.

The Vernier Height Gage incorporates two main measuring scales:

Main Scale: The main scale is a graduated scale marked in millimeters (mm) or inches (in). It runs vertically along the column and serves as a reference for measurements.

Vernier Scale: The vernier scale is a secondary, finer scale that slides parallel to the main scale. It has divisions that are slightly smaller than those on the main scale. The alignment of these divisions with the main scale provides highly accurate measurements.

Operation:

To measure the height of an object or the depth of a recessed feature using a Vernier Height Gage, Basic Type:

Place the flat base on a stable surface.

Position the measuring jaw or probe of the main measuring head on the top surface of the object or the bottom of the recessed feature.

Read the measurement by aligning the lines or markings on the vernier scale with the lines on the main scale. The reading on the main scale and the vernier scale gives the precise height or depth measurement.

Precision:

Vernier Height Gages, Basic Type, are known for their high precision and accuracy. The vernier scale allows users to read measurements with great precision, typically down to a fraction of a millimeter or thousandths of an inch.

Applications:

Vernier Height Gages are used in various applications, including:

Machining: Machinists use them to measure the height of workpieces, ensuring they meet precise specifications.

Engineering: Engineers rely on them for design and prototyping, verifying that components have the correct heights.

Quality Control: In manufacturing, these gages play a crucial role in quality control to ensure that parts meet height requirements.

In summary, a Vernier Height Gage, Basic Type, is a precise measuring tool designed for accurately measuring heights and depths. Its design, with main and vernier scales, allows for highly accurate readings, making it an indispensable instrument in industries and applications requiring precise height measurements.
