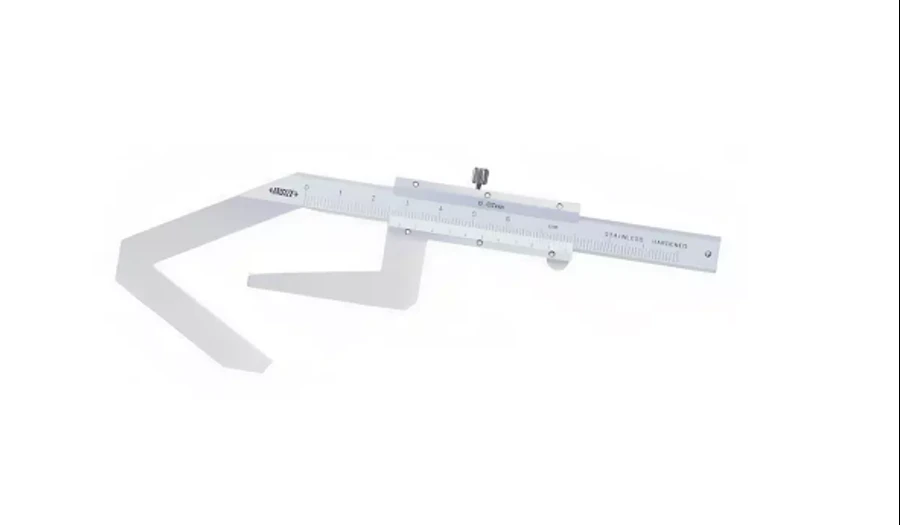

Insize V Shape Vernier Caliper 1229-3

insize-v-shape-vernier-caliper-1229-3-00854-a

Insize V Shape Vernier Caliper 1229-3

$0

Product Code: 00854

1
Pcs

Model No - 1229-3

Type of Product - Vernier Caliper

Measurement Range (mm) - 4-60 mm

Resolution (mm) - 0.02 mm

Material - Stainless Steel

Accuracy - ± 0.04 mm

Length - 260 mm

Shape - V shape

Country of Origin - India

Surface - Satin Chrome Plated

Flute - 3

Name of Manufacturer/Packer/Importer - INSIZE CO., LTD.


Insize 4-60 mm Range Stainless Steel V Shape Vernier Caliper, 1229-3 is a precision measuring tool used for accurately measuring linear dimensions, both internally (inside measurements) and externally (outside measurements). It is widely used in fields such as engineering, manufacturing, carpentry, and scientific research to obtain highly precise measurements. Here's a detailed explanation of the Vernier Caliper in 300 words:


Components and Design:


Main Scale: The Vernier Caliper consists of a graduated main scale, usually marked in millimeters (mm) or inches (in). The main scale serves as a reference for measurements.


Vernier Scale: Adjacent to the main scale is the vernier scale, which is a smaller graduated scale. The vernier scale is divided into smaller units than the main scale, allowing for more accurate measurements. It can slide or move relative to the main scale.


Jaws: The caliper has two sets of jaws: the upper jaws for external measurements (outside diameter or width) and the lower jaws for internal measurements (inside diameter or depth). These jaws can be precisely adjusted to fit the object being measured.


Operation:


To measure an object using a Vernier Caliper:


For external measurements, open the upper jaws and place them around the object. Close the jaws gently until they grip the object securely.


For internal measurements, use the lower jaws. Insert them into the cavity or hole and expand them to make contact with the inner surfaces.


Once the caliper is in position, read the measurement by aligning the lines or markings on the vernier scale with the lines on the main scale. The reading on the main scale and the vernier scale gives the precise measurement.


Precision:


The key advantage of a Vernier Caliper is its high precision. The vernier scale allows users to read measurements down to a fraction of a millimeter or thousandths of an inch, depending on the scale's units. This level of accuracy is essential in applications where precision is crucial.


Applications:


Vernier Calipers have a wide range of applications, including:


Engineering: Used for measuring the dimensions of machine parts, bolts, nuts, and other components.


Manufacturing: Essential for quality control and ensuring that manufactured parts meet specifications.


Carpentry: Used to measure wood and construction materials accurately.


Science and Research: Used in laboratories and research settings for precise measurements in experiments and data collection.


In summary, a Vernier Caliper is a versatile and accurate measuring tool that provides precise measurements for both internal and external dimensions. Its design, with a main scale and a sliding vernier scale, allows for highly accurate readings, making it indispensable in various industries and applications requiring precise dimensional assessments.
