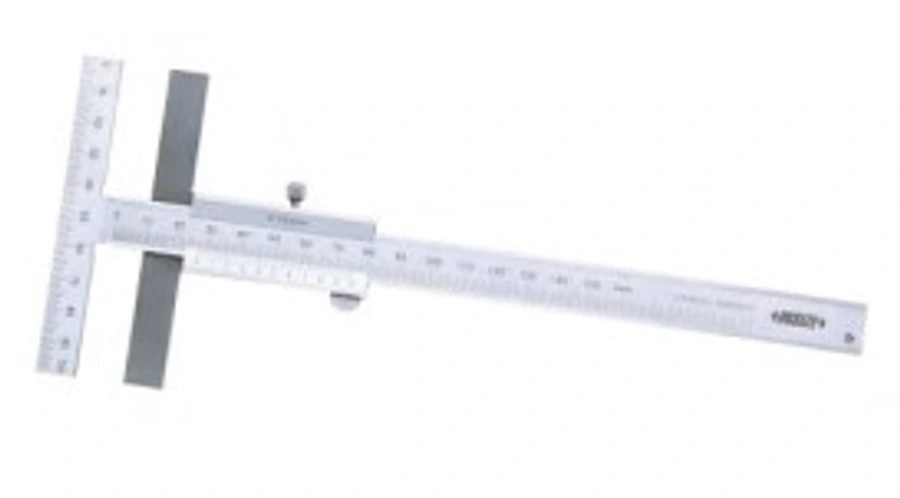

Insize T Shape Marking Gauge 1275-150B

Type of Product - T Shape Marking Gage

Model No - 1275-150B

Material - Stainless Steel

Accuracy - +/- 0.04 mm

Country of Origin - India

Surface Finish Type - Satin Chrome Plated

Length - 253 mm

Graduation - 0.02 mm

Width - 100 mm

Name of Manufacturer/Packer/Importer - INSIZE CO., LTD.

Insize 0-150 mm Range Stainless Steel T Shape Marking Gage with 0.02 mm Graduation, 1275-150B is a specialized layout and marking tool commonly used in woodworking. It is designed to accurately mark the location of mortises, which are rectangular or square holes typically cut into wood for joinery purposes. This type of marking gauge gets its name from its distinctive T-shaped configuration, which consists of a main beam with a crossbeam attached at a right angle, resembling the letter "T."

Key features and components of a T-shape marking gauge include:

Main Beam: The long, vertical part of the "T" serves as the main body of the tool. It is usually made of wood or metal and often has a comfortable grip for easy handling.

Crossbeam: The horizontal portion of the "T" extends perpendicular from the main beam. This crossbeam holds the marking or cutting wheel and is responsible for setting the width of the mortise or the distance from the edge of the workpiece to the marked line.

Marking Wheel: Mounted at the end of the crossbeam, the marking wheel is a small, sharp disc made of hardened steel. It protrudes slightly and is used to scribe a precise line or groove onto the workpiece.

Using a T-shape marking gauge involves the following steps:

Setting the Width: Loosen the locking mechanism on the crossbeam and slide it along the main beam to the desired width, which corresponds to the width of the mortise you want to create.

Positioning and Marking: Place the marking wheel against the edge of the workpiece and ensure that the crossbeam rests firmly on the surface. Run the T-shape marking gauge along the edge, and the marking wheel will create a precise line that represents the position and width of the mortise.

T-shape marking gauges are particularly useful for tasks like mortise and tenon joinery, where accurately marked mortise locations are crucial for a strong and precise fit. They provide woodworkers with a reliable and efficient way to lay out mortises, ensuring that the joints fit together seamlessly and securely. Their design allows for consistent and repeatable results, making them an essential tool for woodworking projects that require precise joinery.
