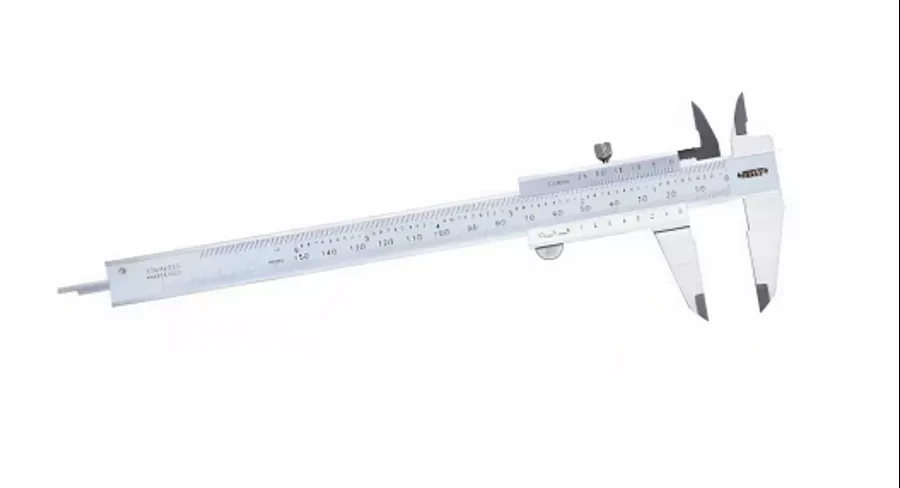

Insize Left Hand Vernier Caliper 1239-1501

Model No - 1239-1501

Type of Product - Left Hand Vernier Caliper

Measurement Range (mm) - 0-150 mm

Resolution (mm) - 0.02 mm

Material - Stainless Steel

Accuracy - ± 0.03 mm

Suitable For - Left Hand Users

Country of Origin - India

Surface - Satin Chrome Plated

Name of Manufacturer/Packer/Importer - INSIZE CO., LTD.

Insize 0-150 mm Range Stainless Steel Left Hand Vernier Caliper, 1239-1501 is a precision measuring instrument used to accurately measure the dimensions of objects, especially in engineering, manufacturing, and scientific applications. It is a specific variant of the vernier caliper, with a unique scale orientation. Here's a detailed explanation of the Left-Hand Vernier Caliper in 300 words:

Components of a Left-Hand Vernier Caliper:

Main Scale: Like a standard vernier caliper, a Left-Hand Vernier Caliper has a main scale, which is a graduated scale typically in millimeters (mm) or inches (in). The main scale consists of a long, fixed ruler with a reference zero point.

Vernier Scale: The vernier scale is a secondary scale that runs parallel to the main scale. It is mounted on a movable jaw or slide that can be opened and closed. Unlike a standard vernier caliper where the vernier scale moves to the right, in a Left-Hand Vernier Caliper, the vernier scale moves to the left.

Jaws: The jaws are two flat, parallel surfaces located at the end of the caliper's slide. One jaw is fixed, while the other is movable. These jaws are used to hold the object being measured.

How it Works:

When you use a Left-Hand Vernier Caliper, you place the object you want to measure between the jaws. As you close the jaws, the movable jaw slides along the main scale. The vernier scale moves to the left relative to the main scale.

To take a measurement, you read the position of the zero point of the vernier scale relative to the main scale. The vernier scale has a series of smaller divisions that correspond to the main scale divisions but are slightly smaller. The alignment of these divisions with the main scale provides a precise measurement. The leftward motion of the vernier scale makes it especially suitable for left-handed users or situations where the orientation of the scale needs to be reversed.

Applications:

Left-Hand Vernier Calipers are used in a wide range of applications, including mechanical engineering, metalworking, woodworking, and quality control. They are particularly useful when you need to measure the dimensions of objects with high accuracy, and their left-reading scale is advantageous for left-handed individuals or situations where a reversed scale orientation is necessary.

In summary, a Left-Hand Vernier Caliper is a specialized measuring tool with a reversed vernier scale orientation. It allows for precise measurements of various objects and is a valuable instrument in industries and fields that require accurate dimensional assessments.
