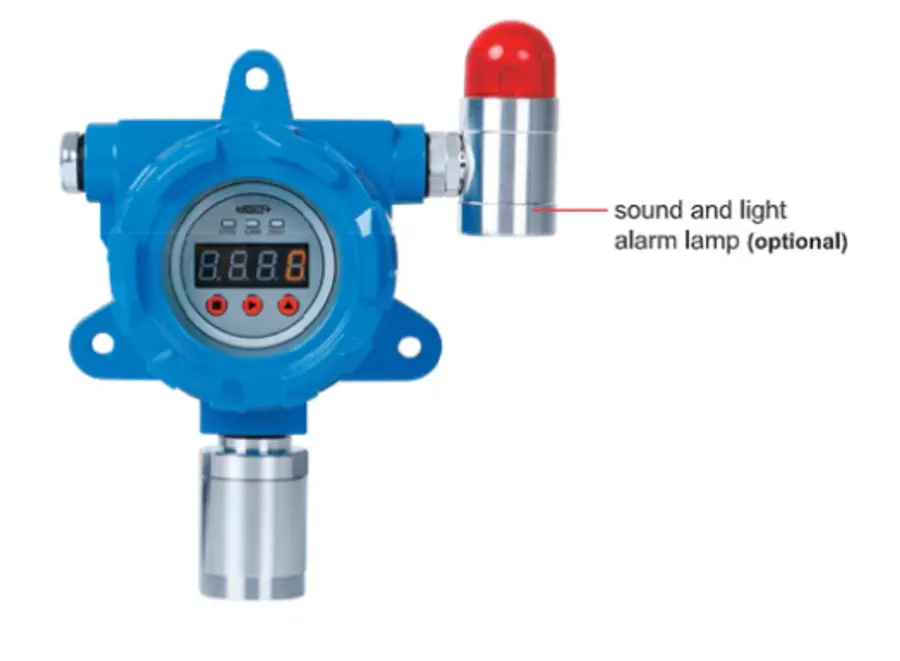

Insize Gas Detection Transmitter - 0613-SG01

insize-gas-detection-transmitter-0613-sg01-00809-a

Insize Gas Detection Transmitter - 0613-SG01

$0

Product Code: 00809

1
Pcs

Specifications:-


  • Continuous detection of gas concentration
  • Customized secondary alarm, light alarm indication, optional sound and light alarm lamp
  • Can be customized other gases, such as O2, CO, H2S, NH3, etc.
  • Fixed installation, wall-mounted installation, longitudinal tube installation
  • Quickly replaceable gas sensors
  • Adjustable calibration values
  • Sampling method: diffusion
  • Protection level: IP65
  • Explosion proof level: Exd II CT6 Gb


Gas - CH₄*

Range - 0~100%LEL

Resolution - 1%LEL

Accuracy - ±5%FS

Response time - ≤30s **

Alarm setting - primary alarm, secondary alarm passive switching output (max: AC 220V 3A)

Alarm output - independent sound and light alarm output

Signal output - RS485, (4~20)mA

Cable - 3×1.5mm² or 4×2.5mm² shield cable

Transmission distance - ≤1000m

Working environment - -40~70°C, <95%RH (no condensation)

Power supply - DC 24V

Dimension - (L×W×H)201×140×93mm

Weight - 1.2kg
