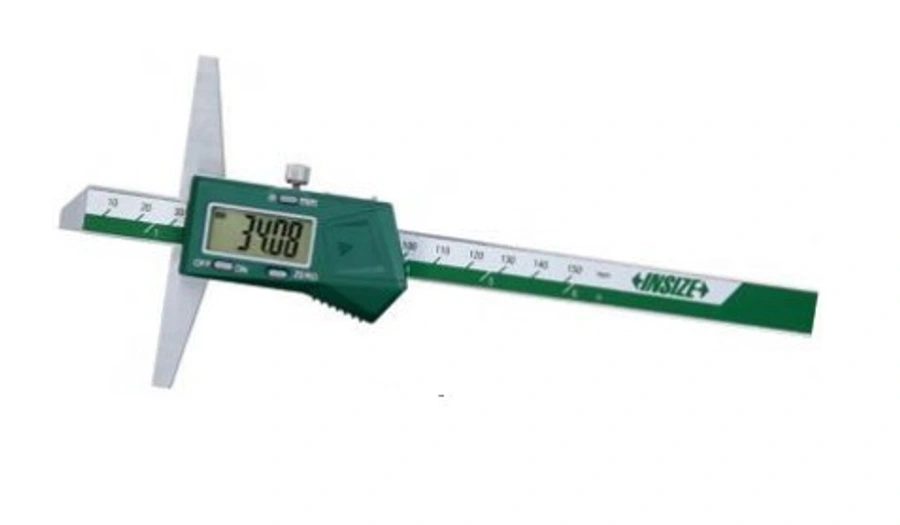

Insize 500 mm Digital Depth Gage 1141-5001A

insize-500-mm-digital-depth-gage-1141-5001a-00844-a

Insize 500 mm Digital Depth Gage 1141-5001A

$0

Product Code: 00844

1
Pcs

Type of Product - Digital Depth Gage

Model No - 1141-5001A

Material - Stainless Steel

Depth (mm) - 200 mm

Accuracy - +/- 0.05 mm

Range - 0-500 mm

Resolution - 0.01 mm

Length - 585 mm

Country of Origin - India

Standard - DIN 862

Data Output - 7315-22, 7302-22

Battery Type - CR2032

Waterproof - No

Name of Manufacturer/Packer/Importer - INSIZE CO., LTD.


Insize 0-500 mm Range Stainless Steel Digital Depth Gage Standard Type, 1141-5001A is a precision measuring tool used for measuring the depth of holes, grooves, slots, and other recessed features in a wide range of industries, including machining, engineering, and manufacturing. It offers the advantage of digital readouts for precise depth measurements. Here's a detailed explanation of the Digital Depth Gage, Standard Type, in 300 words:


Components and Design:


Base: The base of the digital depth gage provides stability and a reference surface for placing the gage on the object being measured. It often has a flat and parallel bottom surface to ensure accurate readings.


Measuring Rod: The measuring rod is a slender, vertical shaft attached to the base. It is used to reach the bottom of the recessed feature to be measured accurately.


Digital Display: Unlike traditional depth gages that use Vernier scales or dial indicators, the Digital Depth Gage features a digital display. This display provides a direct numerical reading of the depth measurement, usually in millimeters (mm) or inches (in).


Depth Probe: At the end of the measuring rod, there is a depth probe or measuring tip. This probe is designed to make contact with the bottom of the recessed feature, allowing for precise depth measurements.


Operation:


To use a Digital Depth Gage, Standard Type:


Place the base on a flat and stable surface.


Position the depth probe of the measuring rod into the recessed feature you want to measure.


Gently lower the measuring rod until the depth probe makes contact with the bottom of the feature.


The digital display immediately shows the depth measurement, providing a highly accurate reading.


Precision:


Digital Depth Gages offer a high level of precision and accuracy in depth measurements. The digital readout eliminates the potential for parallax errors that can occur with traditional depth gages using scales or dials, ensuring reliable measurements.


Applications:


Digital Depth Gages, Standard Type, have a wide range of applications, including:


Machining: Machinists use them to measure the depth of holes, pockets, and grooves in workpieces, ensuring they meet precise specifications.


Engineering: Engineers use them in design and prototyping to verify that components and features have the correct depths.


Quality Control: In manufacturing, these gages play a crucial role in quality control to ensure that manufactured parts meet depth requirements.


Woodworking: Woodworkers use them for tasks such as measuring the depth of mortises and dadoes in woodworking projects.


In summary, a Digital Depth Gage, Standard Type, is a precision measuring tool designed for accurately measuring the depth of recessed features. Its digital display, ease of use, and high precision make it an essential instrument in industries and applications where accurate depth measurements are critical for quality and precision.
