0-25mm/0.001, 0.01mm Digimatic Indicator ID-F, Mitutoyo

About Me

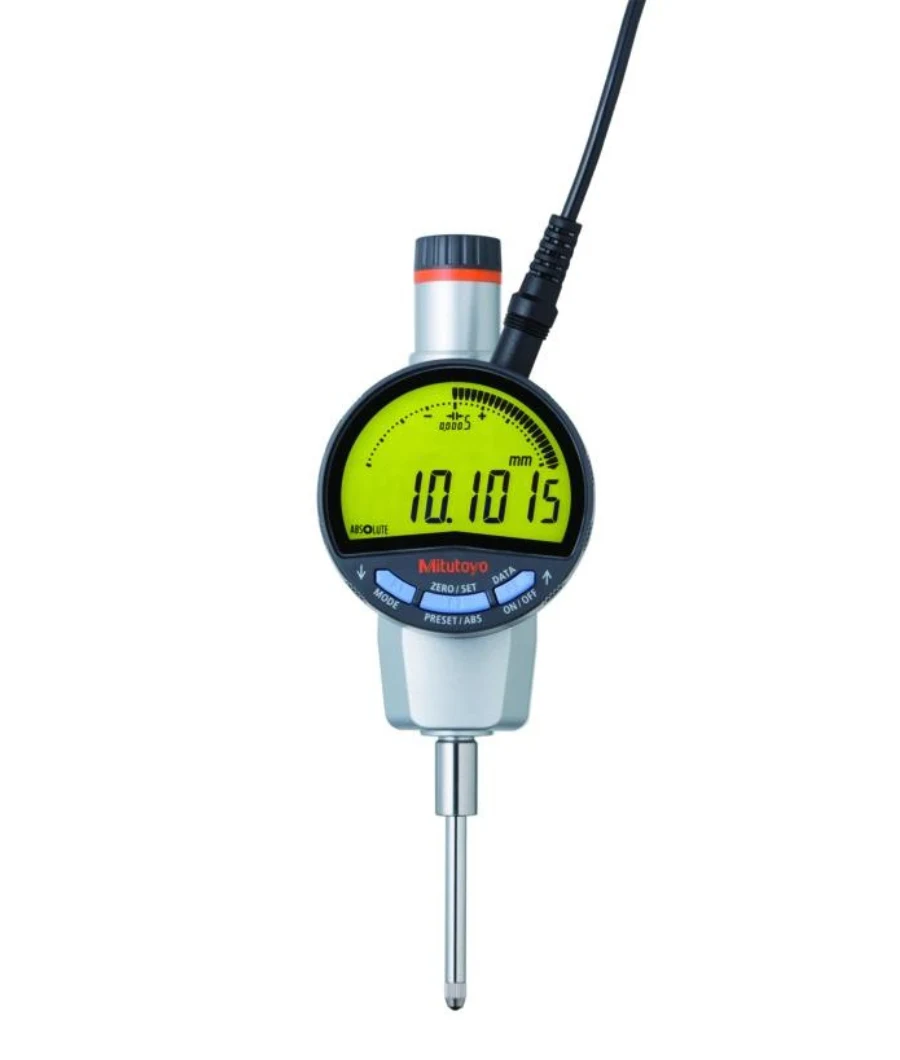

Digital Indicator ID-F

12,7mm, 0,0005mm, Lug Back Plate

Code: 543-851E

Features

This is a superior multifunction indicator.

The ABSOLUTE Digimatic Indicator ID-F offers you the following benefits:

• Bidirectional Digimatic S1 interface
• Red/Green LCD backlight provides you with visual GO/±NG tolerance judgement
• Analogue bar-graph display
• MAX/MIN/RANGE (runout value) function with a frequency of 500 times/s
• External power supply via AC-Adapter
• High accuracy and 0,5 µm digital step

Features

Digital/Analog: Digital

Inch-Metric: Metric

Delivered: Including spindle lifting handle, AC-adapter, certificate of inspection

Range: 25.4 mm

Digital step: 0.0005 mm/0.001 mm/0,01mm

Max. Permissible Error

E MPE (Total Range):0.0025 mm

H MPE (Hysteresis):0.002 mm

R MPE (Repeatability):0.002 mm

Measuring force MPL:≤1.8 N

Protection: IP30

Type: EN ISO Standard

Display: LCD with red/green backlight, character height 11 mm

Max. response speed: Unlimited

Measurement frequency (MAX/MIN/RANGE): 500 times/s

Alarm: Setting errors, sensor error, display overflow a.s.o.

Stem ∅:8 mm

Contact point:Carbide ball, thread: M2.5x0.45

Power supply:AC adapter 5,9V, 2A

DATA/HOLD:Yes

Digimatic data output:Yes

Digimatic S1 Bidirectional interface:Yes

ON/OFF:Yes

Analog bar resolution switchable:Yes

Function lock:Yes

GO/±NG judgement:Yes

ABS / INC (INC ZERO):Yes

Analog bar resolution selection:Yes

Auto Power OFF setting:Yes

Selectable resolution:Yes

Calculation function (with formula):Yes

Customizing keys:Yes

Counting direction switchable:Yes

Inch/Metric switchable:No

Calibration warning function:Yes

Digital step switchable:Yes

Digital Scale:Electrostatic capacitance type absolute linear encoder

Mass:240 g

Plunger Direction:Up to the horizontal direction
