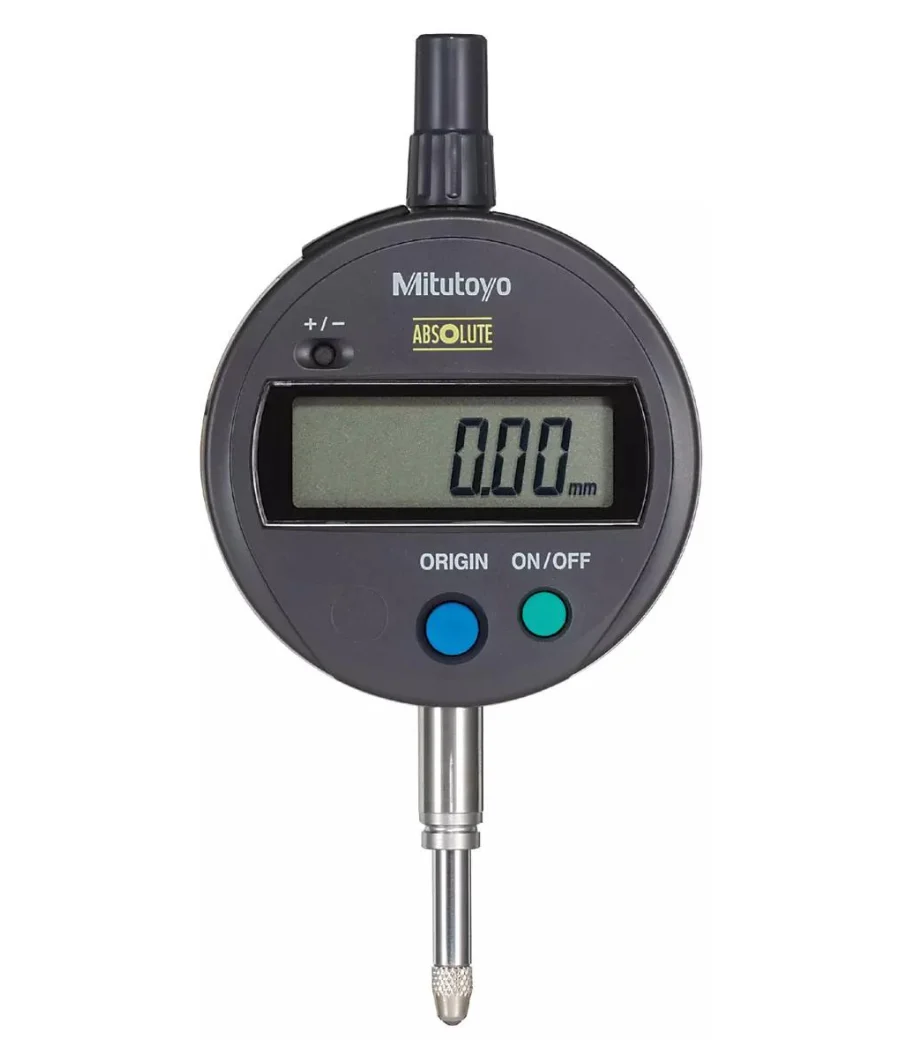

0-12.7mm/0.01mm Digital Indicator ID-S, Mitutoyo

About this Item

Digital Indicator ID-S

12,7mm, 0,01mm, Flat Back Plate

Code: 543-781

Description

This is a standard model of indicator that is reliable and easy to use.

The ABSOLUTE Digimatic Indicator ID-S offers you the following

benefits:

• The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
• You can access all functions by using the large, user-friendly
• buttons on the front of the indicator.
• Large character height of 9 mm provides good readability.
• Exceptional battery life.

Features

Digital/Analog: Digital

Inch-Metric: Metric

Delivered: Including SR44 battery, certificate of inspection

Range: 12.7 mm

Digital step: 0.01 mm

Max. Permissible Error

E MPE (Total Range):0.02 mm

H MPE (Hysteresis):0.02 mm

R MPE (Repeatability):0.01 mm

Measuring force MPL:≤1.5 N

Protection: IP42

Type: EN ISO Standard

Mass: 140 g

Display: LCD, character height 9 mm

Max. response speed: Unlimited

Alarm: Low voltage, sensor error, ABS data composition error

Stem ∅: 8 mm

Contact point:Carbide ball, thread: M2.5x0.45

Power supply:1 battery SR44

Battery life:Approx. 18000 hours (0.001 mm type),

approx. 20000 hours (0.01 mm type)

Remarks:This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.

Digimatic data output:Yes

ON/OFF:Yes

ORIGIN (ABS-Zero):Yes

Counting direction switchable:Yes

Digital Scale:Electrostatic capacitance type absolute linear encoder
