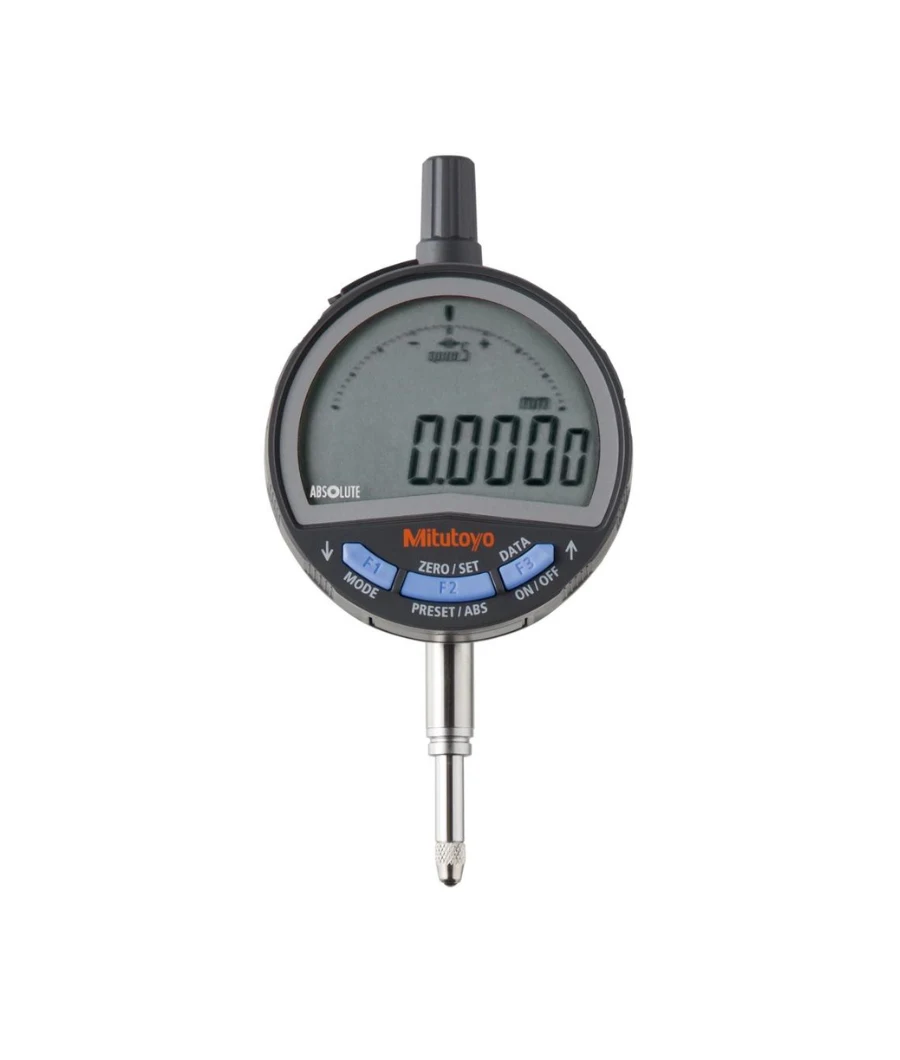

0-12.7mm/0.001mm Digimatic Indicator ID-C, Mitutoyo
0-12.7mm/0.001mm Digimatic Indicator ID-C, Mitutoyo
$0
Product Code: 543-700
About Me
Digital Indicator ID-C
12,7mm, 0,0005mm, Lug Back Plate
Code: 543-700
Description
This is a multifunction standard indicator that is reliable and easy to use.
- Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
- The ABSOLUTE sensor means you donât have to carry out origin setting every time you power it on, saving you time and hassle.
- Excellent visibility with a large digital/analog display.
- Model with 0,5 µm digital step is available.
- Measurements such as simple calculation and peak detection are possible.
- Equipped with a calibration schedule warning function.
- GO/±NG judgement is performed by setting the upper and lower tolerances.
- Display 330° rotatable.
- A function lock protects the display against unauthorised use.
Digital/Analog: Digital
Inch-Metric: Metric
Delivered: Including CR2032 battery, battery lid opener, certificate of inspection
Range: 12.7 mm
Digital step: 0.0005 mm/0.001 mm/0.01mm
Max. Permissible Error
E MPE (Total Range):0.003 mm
H MPE (Hysteresis):0.002 mm
R MPE (Repeatability):0.002 mm
Measuring force MPL: â¤1.5 N
Protection: IP42
Type: EN ISO Standard
Mass: 175 g
Display: LCD, character height 11 mm, 330° rotatable
Max. response speed: Unlimited
Measurement frequency (MAX/MIN/RANGE):50 times/s
Alarm:Low voltage, setting errors, sensor error, display overflow a.s.o.
Stem â :8 mm
Contact point:Carbide ball, thread: M2.5x0.45
Power supply:1 battery CR2032
Battery life:Approx. 2700 hours (continuous use)
DATA/HOLD:Yes
Digimatic data output:Yes
Digimatic S1 Bidirectional interface:Yes
ON/OFF:Yes
Analog bar resolution switchable:Yes
Function lock:Yes
GO/±NG judgement:Yes
ABS / INC (INC ZERO):Yes
Analog bar resolution selection:Yes
Auto Power OFF setting:Yes
Calculation function (with formula):Yes
Customizing keys:Yes
Counting direction switchable:Yes
Inch/Metric switchable:No
Calibration warning function:Yes
Digital step switchable:Yes
Delivered:Including CR-2032 battery, battery lid opener, spindle lifting handle (25,4 and 50,8 mm models), weight (low force models), certificate of inspection
Digital Scale:Electrostatic capacitance type absolute linear encoder
