0-10mm/0.01mm Dial Indicator Thickness Gauge, Mitutoyo

About Me

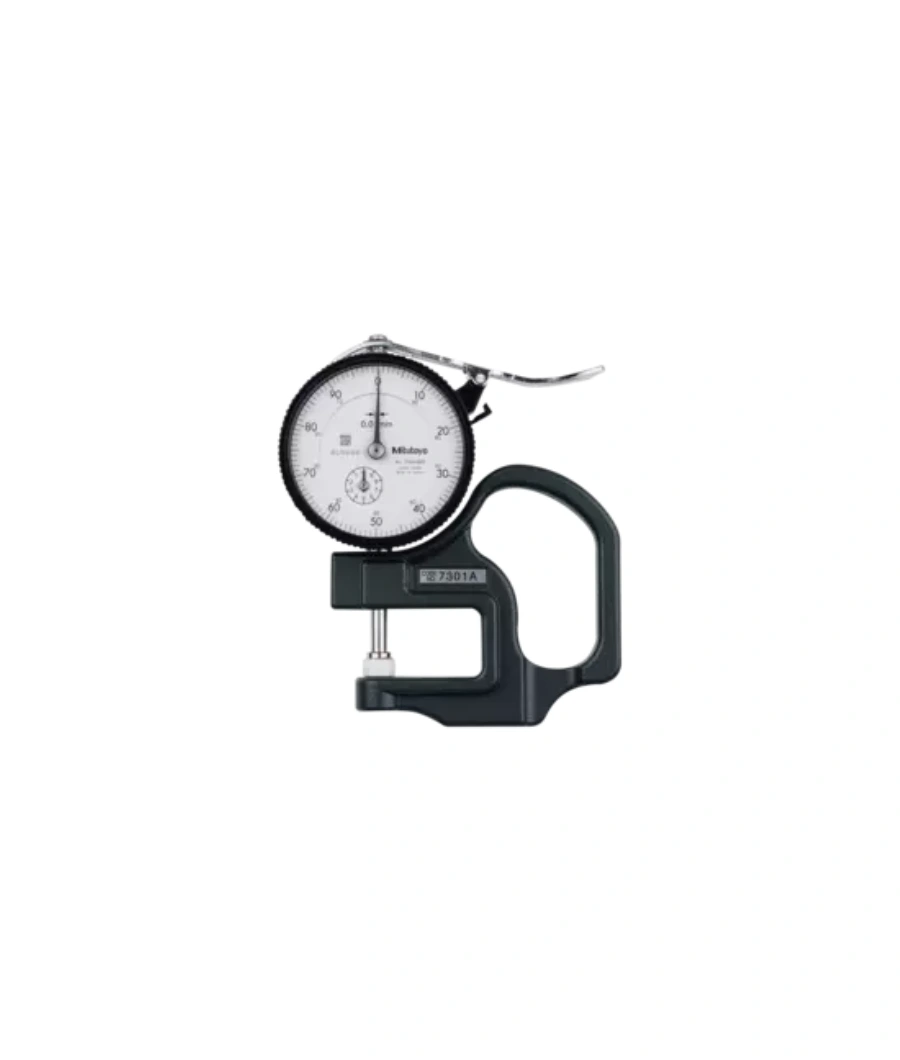

Dial Indicator Thickness Gauge

0-10mm, 0,01mm, Standard, Ceramic Contact Elements

Code: 7301

This Dial Indicator Thickness Gauge enables you to measure tube wall thickness, film/paper etc. with flat contact points, resp. lens thickness or groove depth.

Features

Inch-Metric: Metric

Functions: Ceramic disc contact points

Delivered: In a box with spindle lifting lever 21AZB149

Range: 0 - 10 mm

Graduation: 0.01 mm

Graduation: 0.01

Parallelism: 5 µm

Indicator No.: 2,046AB

Max. measuring depth: 30 mm

Measuring force: ≤ 1,4 N

Mass: 205 g

Contact point: Thread M 2.5 x 0.45 mm

Type: Ceramic disc contact points
