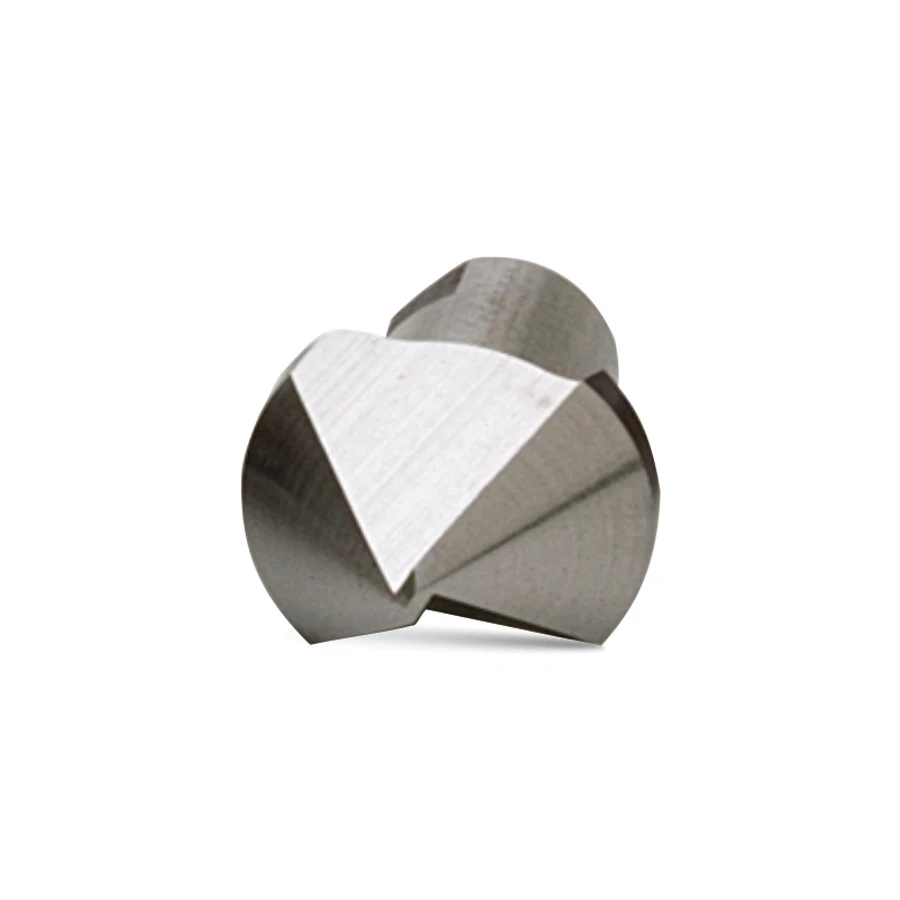

Cp Gratex Two Flute Countersinks CS-20

Description

• Designed for hole deburring and chamfering with higher MRR (material removal rate)
• Suitable for hole sizes from Ø 4 to 19 mm
• Suitable for chamfering and deburring holes on steel, aluminum, and copper
• Can also be used on other metals (hardness < 35 HRC) and plastics
• Can be used manually with the R-SD handle (54034), CS-R revolving holder (62090) or on electric drivers, lathe, drill, and VMC machines
• For clockwise direction use
• Max spindle speed: 800 rpm
• Material: Countersink – HSS
• Range covered: Ø 4 to 19 mm
• Dimensions: Max dia = 21 mm; Shank dia = 12.5 mm; Length = 29 mm; Included angle = 90°; Internal threads = M6
